10kV To 15kV 100A Drop Out Fuse Cutout With Common Design

10kV To 15kV 100A Drop Out Fuse Cutout With Common Design

Do Better Performances in Demanding Duties
Yueqing Aiso gain client trust thanks to their proven reputation for reliability, performance and long life. 10kV To 15kV 100A Drop Out Fuse Cutout from Yueqing Aiso are available for original equipment manufacturers (OEM) to incorporate in their own installations or for use in repair, retrofit and upgrade projects.

Why Yueqing AIso?
1,Full engineering and technical support: 3 professional manufacturers, and technical service team.
2,Quality is No1 ,our culture.
3,Quickly lead times:”Time is gold” for you and for us
4,30min fast response:we have professional team,7*20H

General

Yueqing Aiso 10kV To 15kV 100A Drop Out Fuse Cutout is common design and also is the most popular. Because the price is reasonable and the performance is stable, We can also supply other kinds of drop out fuses. Different specifications of drop fuses can be customized according to your requirements.

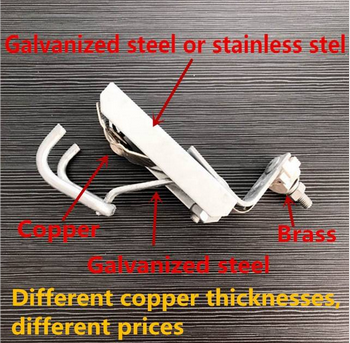

1.Made of high quality material, it has long service life.The fusant is made of pure copper strip. The fusion tube is made of high strength china. The extinguishing medium is made of pure quartz sand.

2.Easy installation and maintenance. The terminal of fusant contacting with the end-plate (or the connecting plate) use the technology of spot welding.

3.Safe indication. The fuse with the indicator can be show the fusing when the indicator pop-up.

4.Durable and reliable.

Service Conditions

Environment temperature:-40℃ to 40℃.

Relative humidity:daily average value not more than 95%, on average less than 90%.

The location of on more than 1000m altitude(high altitude type not more than 3000m).

Wind speed not more than 34m/s.

Ice cover thickness not more than 20mm.

Installation site should be no fire and explosion danger, chemical corrosion andstrenuous vibration.

Technical Parameters

Type

Rated

voltage

(kV)

Rated

current

(A)

Breaking

current

(A)

Impulse

voltage

(kV)

Power-frequency

withstand

voltage(kV)

Creepage

distance

(mm)

ASC1-12/100 12-15 100 8000 110 40 250
ASCA-12/200 12-15 200 10000 110 40 250
