Competitive Price for Power Correction Capacitor - M Type 800A 3Pole MCCB Moulded Case Circuit Breaker – Aiso Detail:

3p circuit breaker General

M Type 800A 3Pole MCCB Moulded Case Circuit Breaker

Comply with GB14048.2008 standards;
Rated insulation voltage:800V;
Frame size rated current:63A; 100A; 225A; 400A; 630A; 800A;
High breaking capacity: up to 100kA;
Reasonable design, safe and reliable, samll size, light weight, beautiful appearance;
Accessories everything, quick installation, easy to use, strong applicability.
Main technical parameters
Model Frame size rated current(A) Rated current(A) Rated ultimate short circuit breaking capacity(kA)400V Rated operating short circuit breaking capacity(kA)400v Arcing distance(mm) Rated impulse withstand voltage Uimp(kV)
ASM1-800M/3300 800 400, 500, 630 75 50 ≤100 8

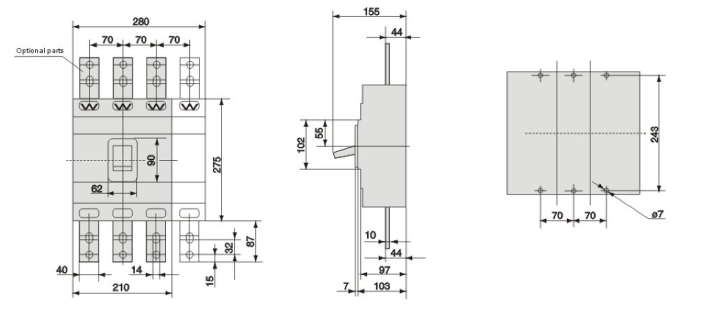

Overall dimension and installation dimension
