Comply with GB14048.2008 standards;
Rated insulation voltage:800V;
Frame size rated current:63A; 100A; 225A; 400A; 630A; 800A;
High breaking capacity: up to 100kA;
Reasonable design, safe and reliable, samll size, light weight, beautiful appearance;
Accessories everything, quick installation, easy to use, strong applicability.
Main technical parameters
Model |
Frame size rated current(A) |
Rated current(A) |
Rated ultimate short circuit breaking capacity(kA)400V |
Rated operating short circuit breaking capacity(kA)400v |
Arcing distance(mm) |
Rated impulse withstand voltage Uimp(kV) |
ASM1-100L 4300 |
100 |
16, 20, 25, 32, 40, 50, 63, 80, 100 |
85 |
50 |
≤50 |
8 |

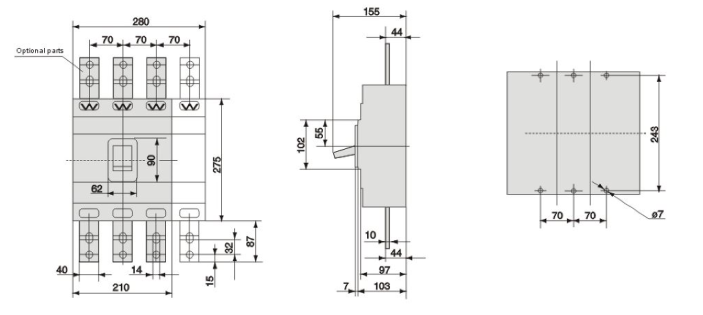

Overall dimension and installation dimension
