What is recloser/automatic circuit recloser

Recloser/Automatic Circuit Recloser

What is recloser/automatic circuit recloser?

Recloser also called Automatic Circuit Recloser(ACR), rated at up to 38kV,16kA, 1250A,  with single-phase or three-phase.

Why use recloser/automatic circuit recloser?

Recloser cut/shuts off electric power when trouble occurs, such as a short circuit.

If the problem was only temporary, then automatically resets itself and restores the electric power.

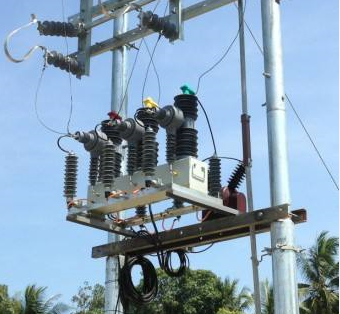

Simple, reliability and over-current protection widely used for outdoor pole mounted(like circuit breaker) or substation installation.

Recloser types?

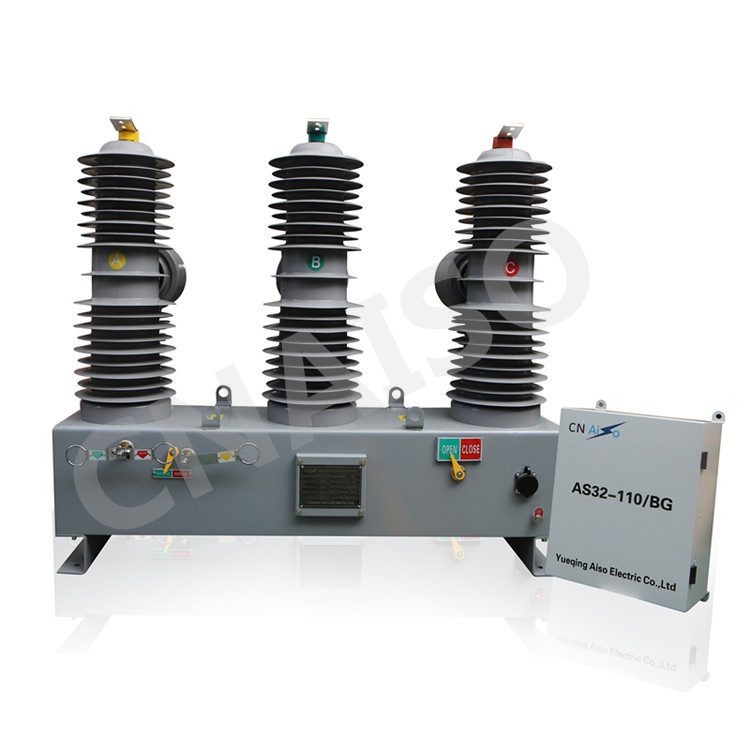

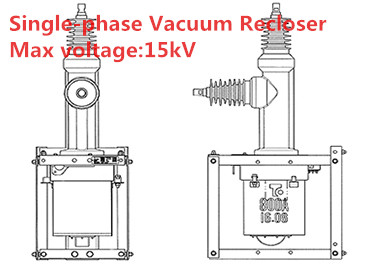

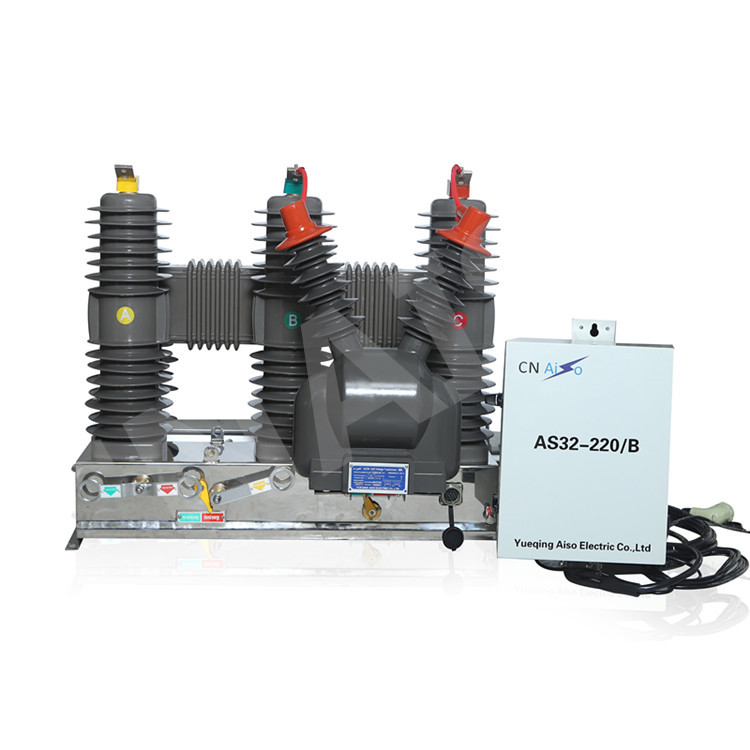

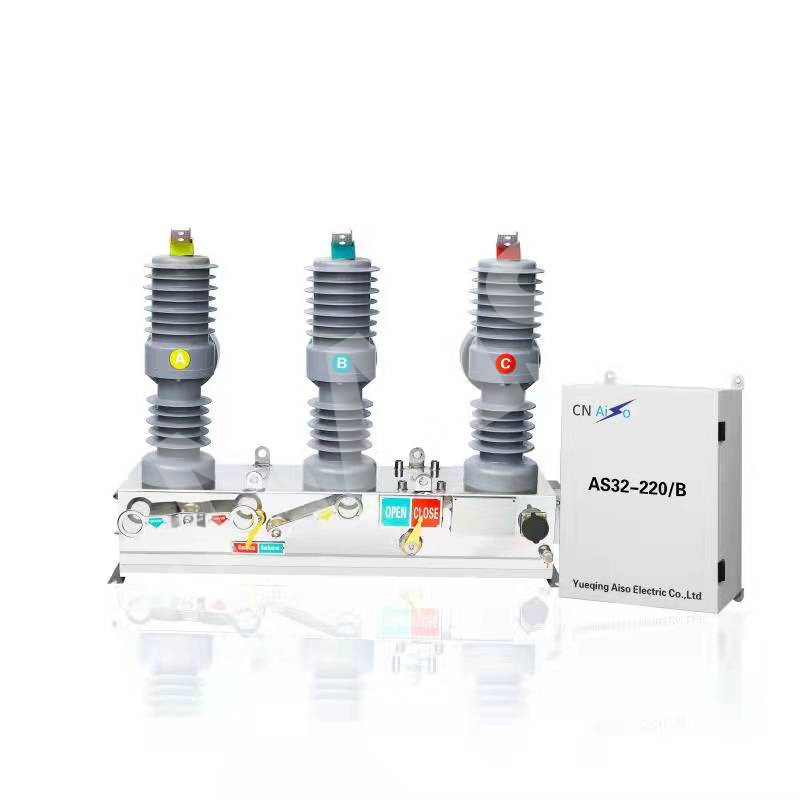

Single-phase automatic circuit recloser or three-phase automatic circuit recloser.

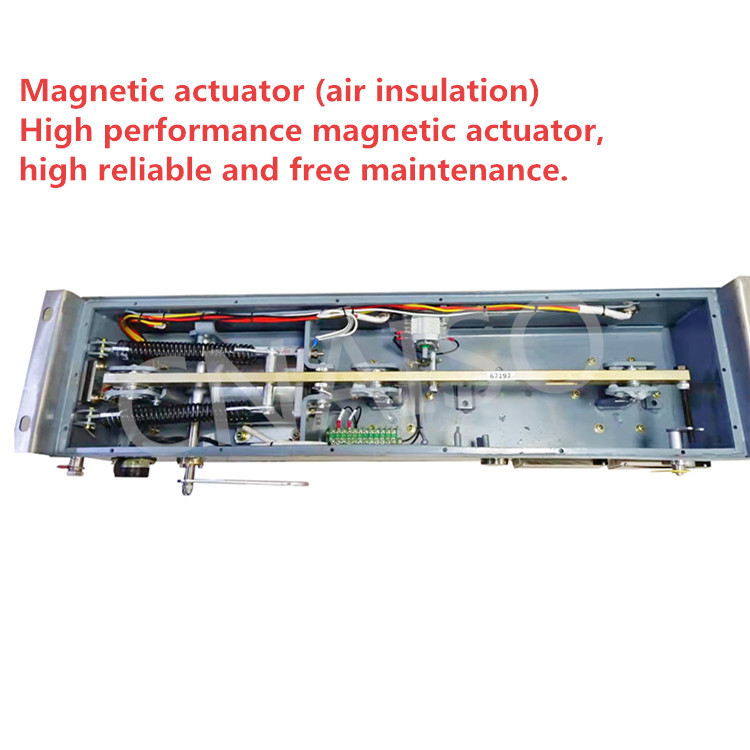

And based upon electrical ratings required, interrupting and insulation medium, operating mechanism，and the selection of hydraulic or electronic control to design to meet different requirements.

Insulation medium: Vacuum recloser or SF6 recloser.
