12kV Outdoor High Voltage Permanent Magnet Vacuum Circuit Breaker

Specification: 500-600 USD/PIECE
Use Parts: 1 PIECE
Supply Ability: 100 PIECE
Payment Terms: TT , LC , Others
Tags:
Place of OriginZhejiang, China
Brand NameAISO/OEM
Model NumberZW32M-12
TypeVacuum, Outdoor
Poles Number3
Product12kV Vacuum Circuit Breaker
Rated Voltage12KV
Rated current630A
Rated frequency50Hz
Rated short-circut 30times
Mechanical life10000Times
UsesHigh voltage
StandardGB1984-89
CustomizedAccept special order
Packaging DetailsStandard export wooden case packing
PortNingbo or Shanghai

 Voltage Permanent Magnet Vacuum Circuit Breaker

12kV Outdoor High Voltage Permanent Magnet Vacuum Circuit Breaker

Product Structure

ZW32M-12 type outdoor high voltage vacuum circuit breaker is rated voltage 12kV, three-phase AC 50Hz outdoor distribution equipment, which is mainly used for breaking, closing power system load current, overload current, short-circuit current. For substation and industrial and mining enterprises distribution system for the protection and control of the role and place of rural power grids frequent operation.
The circuit breaker has small size, light weight, anti-condensation, maintenance-free characteristics, can adapt to poor weather conditions and dirty environments.
The models with permanent magnet operation mechanism operates: since the permanent action energy operating mechanism provided by a permanent magnet, the switch quickly to keep the points off position, a small number of mechanical parts, mechanical transmission chain is short, thus greatly improving the switch reliability and mechanical life.

12kV Outdoor High Voltage Permanent Magnet Vacuum Circuit Breaker

12kV Outdoor High Voltage Permanent Magnet Vacuum Circuit Breaker

12kV Outdoor High Voltage Permanent Magnet Vacuum Circuit Breaker

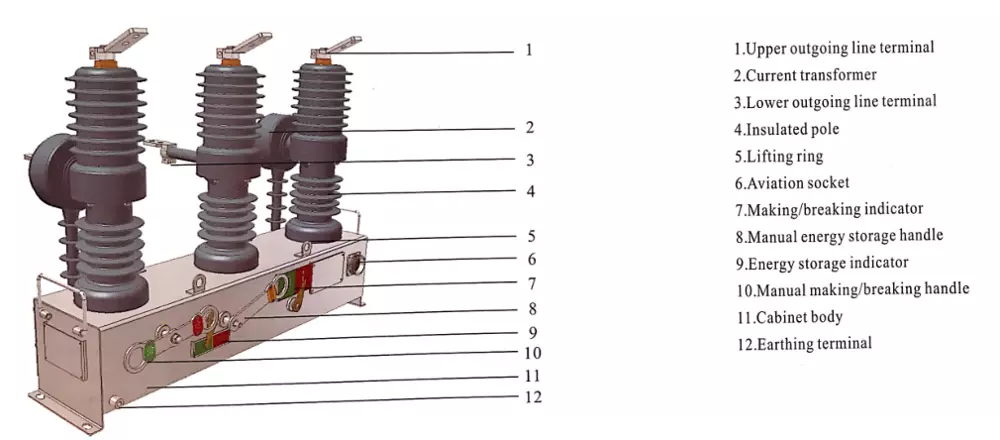

 Structure

12kV Outdoor High Voltage Permanent Magnet Vacuum Circuit Breaker

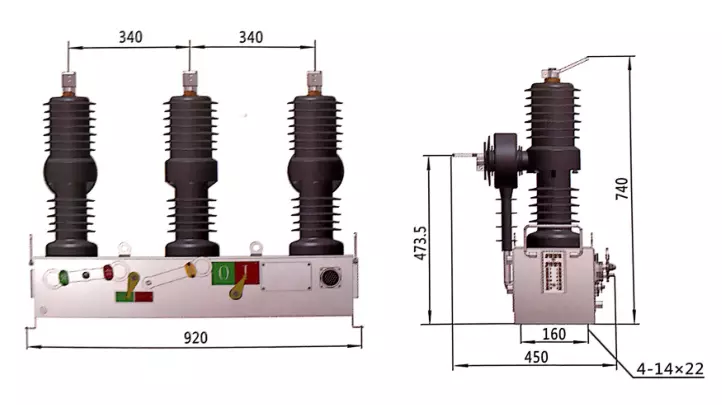

Overall and installation dimension

12kV Outdoor High Voltage Permanent Magnet Vacuum Circuit Breaker

12kV Outdoor High Voltage Permanent Magnet Vacuum Circuit Breaker
