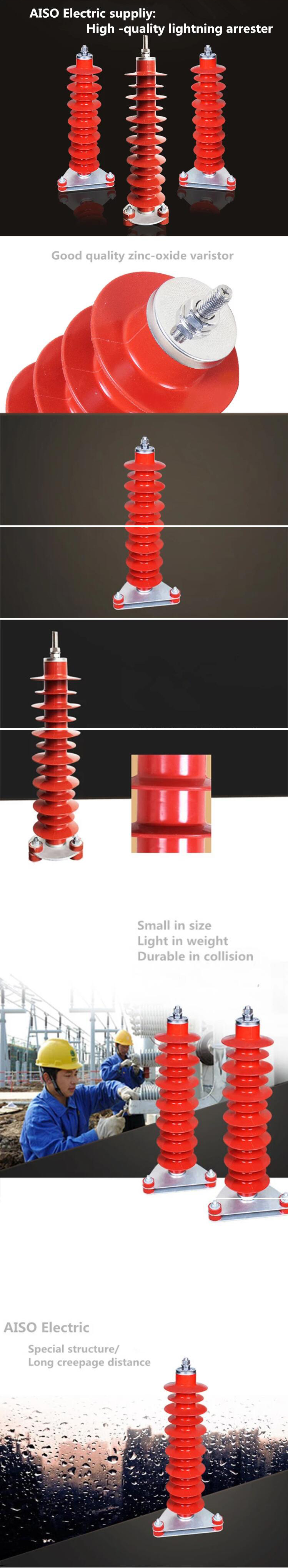

Place of Origin:Zhejiang, ChinaBrand Name:AISO/OEMModel Number:YH10WXProduct Name:33-35kv lightning arresterSystem rater voltag:35kVDischarging current:10kAPackaging Details:By carton or plywood casePort:Ningbo or Shanghai
The zinc oxide arrester is the most advanced over-voltage protector in the world,Due to make the risistor disc of core componet mainly adopt zine oxide arrester.Compared with the conventional silicon carbide arrester, this presciption of the product improves gr-eatly the volt-Ampere characterisics of the resistor disc and increased through-current capability at over-voltage so as to dring a rad-ical changes for the characteristics of the arresters.
Usual Service Condition
Power frequency:48Hz ~60HzAmbient temperature:-40°C~+40°CMaximum wind speed: not exceed 35m/sAltitude: not exceed 2000mEarthquake intensity: not exceed 8 degreesIce thickness: not exceed 10 meters.Long-term applying voltage does not exceed the maximum coutinuous operating voltage.

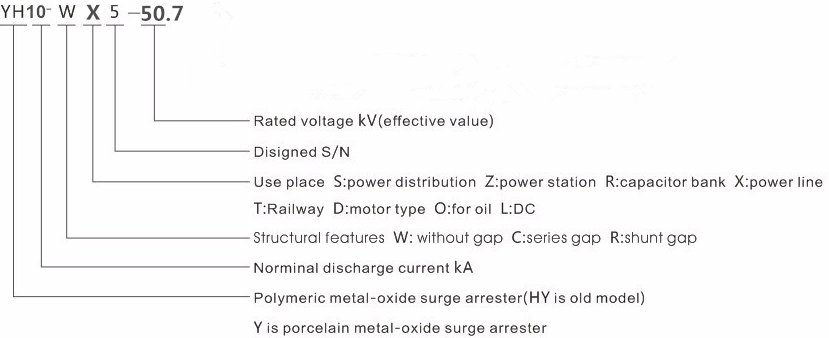

Type Specifications
Main Technical Parameters
Type |
Rated voltage kV(rms) |
Maximurn continous operation voltage kV(rms) |
Max.Residualvoltage |
2000μssquare impulse withstand A(crest) |
4/10μs high currentimpulse Ka(crest) |
||
Steepcurrent impulse kV(crest) |
30/60μsSwitching current impulse kV(crest) |
8/20μs Lightning current impulse |
|||||
YH10WX | 33 | 26.8 | 104 | 84.7 | 99 | 250 | 100 |
